Details

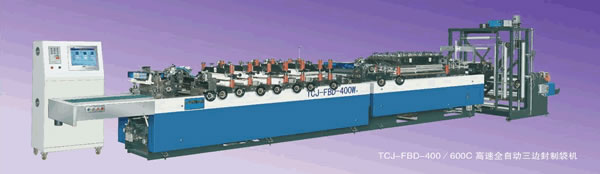

TCJ-FBD-400 / 600W is a high speed side sealing, the dual seal bag making machine, which uses the cutting-edge of the bag, the international design, and equipped with a high-performance electric control system, so that it can operate in a stable high speed.

Technical Parameters


Materials
Various composite plastic film
Film roll size
Maximum width: 820mm, maximum diameter: Ф600mm

Discharge System
Unwinding air shaft, V-frame, magnetic braking device

Control Systems
Industrial computer numerical control systems

Materials traction
Dual stepper motor traction system (dual servo motor traction system)

Hot knife vertical movement mechanism
AC induction motor drive system

Bag width
75 ~ 400mm
Bag length
Two hot pressure 300mm max. Once hot pressure 500mm max. * Use multiple conveying function, increase the length of the bag

Side sealing bag capacity: Up to 150 parts / min, 30 m / min in the envelope: maximum 130 parts / min, 28 m / min.

Power Requirements
18kw
Installation size, weight
Approximately 2345 × 8910mm, 3600kg
Alternative parts
Host servo systems, portable and punching device, dual discharge unit, five side sealing function, stand-up pouches function
