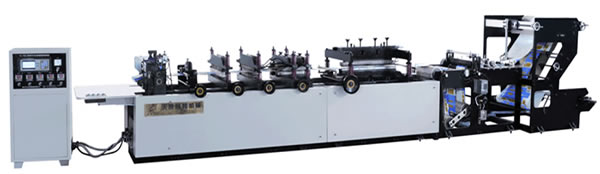

This machine is my company to introduce advanced technology, combined with the advantages of similar products, design and manufacturing, light, electricity, machines as one of the high-speed automatic paper bag making machine.
This machine has a continuous discharge, continuous folding, gluing continuous, intermittent bag middle has a conversion feature. The machine uses a computer controlled stepper or servo pull material fixed length, photoelectric tracking for environmentally friendly paper in sealed bags making. (You can also making plastic bag)


Technical parameters:

Project
TCJ-FBD350

The maximum diameter of unwinding
Φ600mm

The maximum width of unwinding
720mm

Speed bag
≤150pcs / min

Bag width
≤350mm

Bag length
50-1000mm

Making Accuracy
± 0.5mm

Total power
12kw

Gas source
0.6Mpa

Cooling water
15L / min

Weight
About 3000kg

Dimensions
7000 × 1020 × 1400mm
