Details:

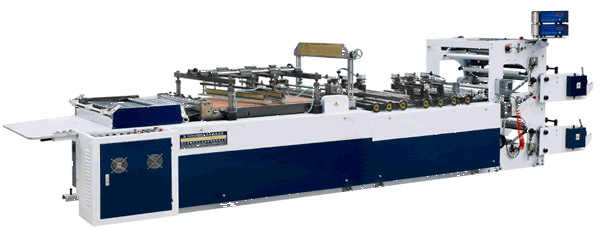

This machine is my company to introduce advanced technology, combined with the advantages of similar products, design and manufacturing, light, electricity, machines as one of the automatic high-speed bag making machine. This machine has a fixed-length computer master servo automatic photoelectric tracking, automatic photoelectric correcting vertical dotted line pressure, the host frequency control and other functions. And with dual discharge, double-correcting, double feeding, has more than punching device, suitable for BOPP, OPP, PF, PVC, and other special-shaped plastic film bag production.

Technical parameters:
Item Item YX-700B
Roll size Reel Dimension diameterφ600mm
   Max.width 720mm

Speed ​​bag Bag Making speed 120pcs / min
Bag Bag Making width width
  Max.700mm
Bag length Bag Making length 25-600mm
Bag Bag Making precision accuracy
  ± 0.5mm

Total power Motor power 9kw
Gas supply Gas Source 0.6Mpa
Cooling Water Cooling Water 15L / min
Weight Machine weight (About) 2200kg
Dimensions Overall dimensions 6000 × 1500 × 1400mm
