Details:

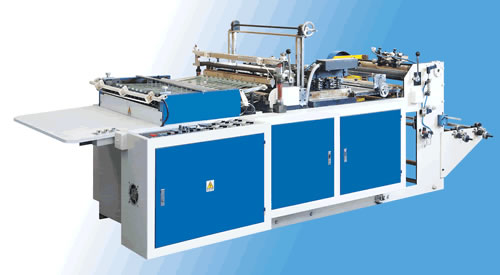

TCJ-RFQ series computer bag making machine is my company needs for the plastic packaging market, developed a keen edge seal bag equipment, supporting the use of the same folded membrane may OPP, PP, PE, plastic shrink film bag sealing and cutting material. Models are divided into two categories (see below), depending on its configuration and function. The products are widely used in clothing, stationery, hardware and other products packaging.
Our machine, electricity, gas as a whole, the use of advanced single-chip microcomputer as the master, together with step-length, photoelectric scanning tracking, temperature-controlled, pneumatic drilling and other industrial devices to the production of packaging products Dimensions precise, firm seal line, tangent and beautiful that you can be assured of quality equipment bag.
When you order, please read below the menu in order to buy the model you need.

Technical parameters:
Basic instructions TCJ-RFQ350 / 800 computers eagerly TCJ-RFQ500 / 800 multifunction computer eagerly machine
After the basic specifications applicable bag material folded membrane forming OPP, PE, PP, shrink film folded after forming OPP, Jane profiles PE, PP, shrink film
Effective bag width 500,700mm 500,700mm
The effective length of the bag 50 ~ 1000mm 500 ~ 1000mm
Making Accuracy ± 0.5mm ± 0.5mm
Mechanical speed 200pcs / min 200pcs / min
Power Supply AC single-phase 220V or AC380V AC single-phase 220V or AC380V
Machine backup power 4kw 5kw
Unwinding cone top shelf in the form of duplex-style duplex solid fan apex solid fan type (LPC corrective discharge device)
Roll diameter Ф500mm Ф500mm
Manual mechanical friction and tension-type manual mechanical friction (optional magnetic brake)
Feeding the way DC motor speed, arm-fed DC motor speed, swing arm feeding
Mechanical power main motor variable frequency motor 0.75kw 0.75kw inverter motor
Transmission Pulleys Pulleys
Fixed-length long way to pull convinced stepper motor systems, computer controlled stepper motor, computer control (optional servo motor)
Optical inspection mark photoelectric switch symbol photoelectric switch
Bag Sealing form feature flat cut, point cut fancy flat, point Fancy
Tube-type materials can be made open side open side, insert M bottom flap of the envelope type
Not on the sticker on the strip, self-adhesive strip on single-punch, punch holes on Ф6mm airplane single-sticker strip, Ф6mm airplane hole punch
Temperature control cutter 0 ~ 400 ℃ digital temperature 0 ~ 400 ℃ digital temperature controller
Rollers flatten 0 ~ 300 ℃ pointer temperature controller
Optional features distribution control electrical components imported or imported from Taiwan or Taiwan
