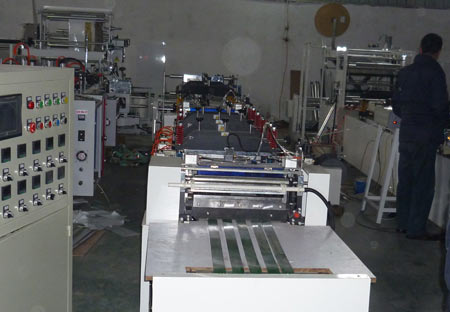

computer-controlled multi-function bag making machine Details：The bag machine is an advanced mechanical, electrical and pneumatic equipment. Mechanical pressure on the use of large structures, the main motor and the motor discharge by the frequency control, traction components using servo motors, traction roller pressure, tension, double sent by pneumatic control. Electrical equipment uses industrial computer control, dynamic display screen by the color CRT production status of each parameter. Including: Bag length, actual length, speed, quantity, batch number, alarm, tracking, pulling tension, heating temperature, synchronized discharge, downtime, times of delivery and other options. The bag making machine bag making many kinds of composite films can be made triangular seal, pouches, zipper bags. Finished bag made of smooth, crisp, no scratches, beautiful shape, heat sealing at high intensity, bag high precision, speed, pressure, low noise, long life, stable performance, food and many other industries are the ideal choice for packaging and decoration equipment.

computer-controlled multi-function bag making machine Technical parameters Description：
CFB-400/600 Ⅲ computer control multi-function bag making machine
Bag Size Width 50-400mm (lock bag widest 350mm)
length of 70-300mm (300mm with times more than to send methods)
Seal width 10-20mm vertical closure of two, horizontal sealing 10,20,30,40,50 (mm) of five Article 600mm self hot Independent hot hot mold a pair of film samples, and other specifications according to Bag-owned or custom specifications.
Speed Bag 60-150 segment triangular envelope / min, self-lock bag with the 30-100 segment / min
Maximum operating speed of 45m/min
Electric heating power 28kw (vertical sealing 10KW, Wang Feng 12KW, clip chain 3KW, pouches 3KW)
Computer-controlled temperature control Frequency conversion motor main motor 2.2KW
Maximum diameter of roll material specifications 600mm, width 150-900mm
Total capacity 33.5KW
Dimensions (l × w × h) 9080 × 1410 × 1900mm Total weight 3500Kg
