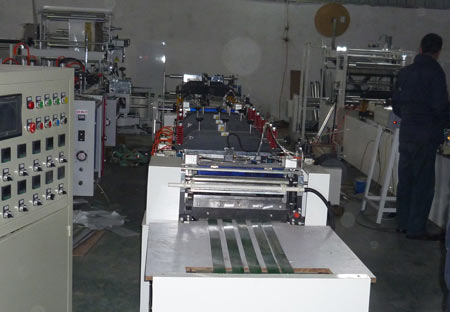

FBD400C-500C-600C-based computer-controlled high-speed side sealing bag making machine
Description: The high-speed side sealing bag making machine is absorbing domestic and foreign equipment my company many years of experience with its own advantages, according to market demand, the development of light, electricity and gas as one of the high-tech products. For the production of a variety of composite film substrate, high standards of the triangular envelope. Electrical control system centrally controlled by computer, the screen man-machine interface dialogue, according to the different demand settings, display operating parameters. Tension out of control, loss of color, speed and automatically shut down the host. Hot pressure using a large pressure structure, delivery times and pulling the plug type used in two ways, take the film to change the traditional way of direction, using the opposite direction, the membrane mirror bar by bar, film no scratches, keeping the surface clear and beautiful film. Is the production of vacuum packaging, cooking and packaging the ideal equipment.
1. For various composite films. 2. All parameters in real time by the CRT display can be preset speed bag, bag length, temperature, counting, punching, times of delivery, such as product throughput. 3. By AC Servo System Control Double bag length, high quality and efficiency. 4. Unwinding the central tension out of control, loss of color, temperature gauge, such as automatic alarm. 5. 6 times to enhance delivery of new features. 6. Unwinding automatic tension control, optical correction. 7. May need to increase stand bags, zipper bags function; custom two-piece wide body aircraft.

High-speed side sealing bag making machine Main technical parameters
Project FBD400C FBD600C
Unwinding diameter of the largest φ400mm φ600mm
Unwinding the maximum width of 800mm 1200mm
Speed bag ≤ 150pcs/min
Variety Bag Trilateral closure
Bag length Maximum 300mm, long way with times of delivery
Bag accuracy ≤ ± 0.5mm
Bag width 80-400mm 80-600mm
Total power 14KW 30KW
Gas source 0.6mpa
Cooling water 15L/min
Weight About 3300kg About 5000kg
Dimensions 8200 × 1400 × 1750mm 8500 × 1700 × 1850mm
Note: according to the need to increase self-bags, five-sided letters, double-discharge, folding and other functions
