Product Name:

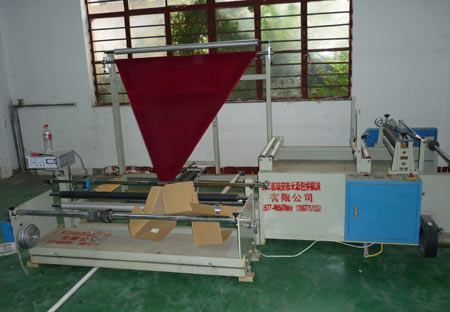

Folding winder
Products:
This machine is a sheet in a process before sealing bag. Application materials: BOPP, PP.PE, heat shrinkable film of various materials may be eager sheet (substrate flatness better) function: Automatic tape, folding organ bottom, the pearl film, ultrasonic hobbing longitudinal seal, Jane Liu break, optical correction, automatic meters, double folding, retractable material to use magnetic brakes, the machine is a sheet in the bag before sealing device of choice.

Main technical parameters:
Main parameters of the machine

Type: ZIP-600

Production speed :10-60m / min

Maximum material width: 1200mm

Maximum diameter of raw material: 600mm

Finished diameter: 600mm

Embossing temperature :0-30 degrees

Power supply voltage: 55HZ/220V

Total power: 2KW

Weight: 500KG

Size: 2850 * 1300 * 1700mm
